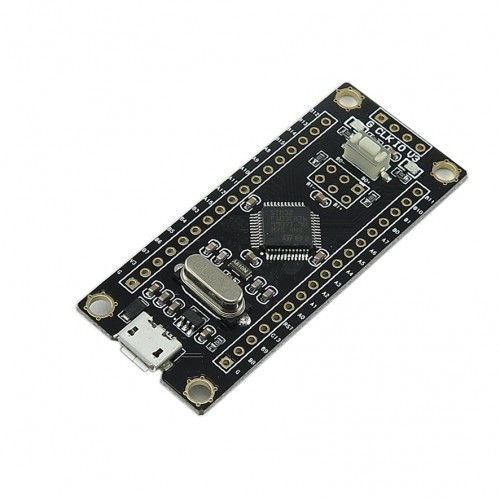

برد توسعه آرم 32 بیتی STM32F103C8T6

kernel: the ARM 32  bit the Cortex ™ M3 the CPU
Maximum 72MHz operating frequency
Single cycle multiplication and hardware division

memory
From 64K or 128K bytes of Flash program memory
Up to 20K bytes of SRAM

clock, reset and power management
2.0  3.6 V power supply and I / O pins
Poweron / off reset (the POR / the PDR) , programmable voltage monitor
Device (PVD)
4 ~ 16MHz crystal oscillator
Embedded factory trimmed by 8MHz of RC oscillator
Embedded with calibrated 40kHz of RC oscillator
Generated CPU clock PLL
With calibration function 32kHz RTC oscillator

Low power consumption
Sleep, Standby and Standby modes
V the BAT  for the RTC power supply and backup registers
2  Ge 12  bit ADC, 1us  conversion time (  up to 16 Ge
Conversion range: 0 to 3.6V
Double sampling and hold function
Temperature sensor
L the DMA  :
7 channel DMA controller
Supported Peripherals: Timer, the ADC , the SPI , the I 2 C and

USART
Up to 80  Fast I / O  ports
26/37/51/80 an I / O port, all I / O ports can be mapped to
16 external interrupts; almost all of the ports can tolerate 5V letter number

debug mode
Serial wire debug (SWD) and JTAG interfaces

up . 7  timers
3 Ge 16 bit timers, each timer with up to 4 Ge for
Input capture / output compare / PWM or pulse counting channel
And incremental encoder inputs
1 Ge 16 bit deadtime control and emergency brake, for motor
Control PWM advanced control timers2 watchdog timer ( separate window and type )
System timer: 24 position self Save Counters

up . 9  communication interfaces
Up to 2 Ge I 2 C Interface ( supports SMBus / PMBus)
Up to 3 Ge USART interfaces ( supports ISO7816 interface
The LIN , the IrDA interface, and modem control )
Up to 2 Ge SPI interfaces (18M bit / sec )
The CAN Interface (2.0B  active )
The USB 2.0 full speed interface
