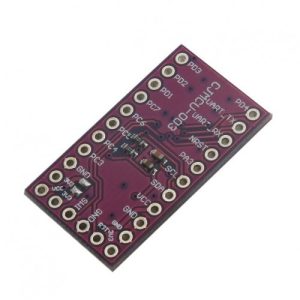

برد توسعه STM8S003F3P6 دارای پردازنده 8 بیتی محصول CJMCU

Product Introduction:

Features:

1.Core:

  1)16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline

  2)Extended instruction set

2.Memories:

  1)Programmemory:8KbytesFlash;dataretention 20 years at 55 celsius after 100 cycles

  2)RAM:1 Kbytes

  3)Data memory:128 bytes of true data EEPROM;endurance up to 100000 write/erase cycles

3.Clock, reset and supply management:

  1)2.95 to 5.5 V operating voltage

  2)Flexible clock control,4 master clock sources:

    -Low power crystal resonator oscillator

    -External clock input

    -Internal,user-trimmable 16MHz RC

    -Internal low power 128KHz RC

4.Clock security system with clock monitor

5.Power management:

  1)Low power modes (wait,active-halt,halt)

  2)Switch-off peripheral clocks individually

6.Permanentlyactive,lowconsumptionpower-on and power-down reset

7.Interrupt management:

  1)Nested interrupt controller with 32 interrupts

  2)Up to 27 external interrupts on 6 vectors

8.Timers:

  1)Advanced control timer:16-bit,4 CAPCOM channels,3 complementary outputs,dead-time insertion and flexible synchronization

  2)16-bit general purpose timer, with 3 CAPCOM channels (IC,OC or PWM)

  3)8-bit basic timer with 8-bit prescaler

  4)Auto wake-up timer

  5)Window watchdog and independent watchdog timers

9.Communications interfaces:

  1)UART with clock output for synchronous operation,Smartcard, IrDA,LIN master mode

  2)SPI interface up to 8 Mbit/s

  3)I2C interface up to 400 Kbit/s

10.Analog to digital converter (ADC):

  1)10-bit,+/-1 LSB ADC with up to 5 multiplexed channels,scan mode and analog watchdog

11.I/Os:

  1)Up to 28 I/Os on a 32-pin package including 21 high sink outputs

  2)Highly robust I/O design,immune against current injection

12.Development support:

  1)Embedded single wire  interface module(SWIM) for fast on-chip programming and non intrusive debugging
